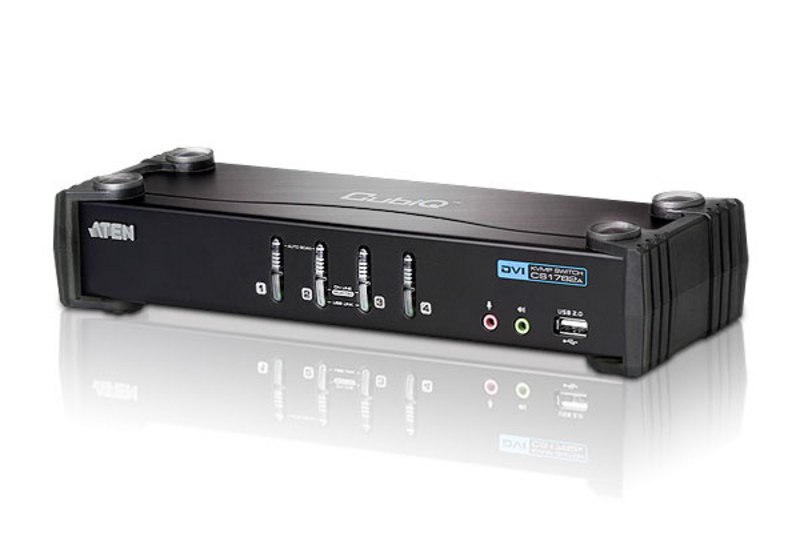

Aten CS-1764A – USB 2.0 DVI KVMP Switch
The CubiQ™ CS1764A USB 2.0 DVI KVMP™ Switch charts a revolutionary new direction in KVM (Keyboard, Video, Mouse) switch functionality by combining a 4 port KVM switch with a 2 port USB 2.0 hub at the same time as it provides an interface for a digital monitor (DVI).
In addition, the CS1764A comes with ATEN's new Video DynaSync™ technology, which optimizes display resolution, and power on detection, which means if one computer is powered off, the CS1764A will automatically switch to the next powered-on computer.
As a KVM switch, it allows users to access four computers from a single USB keyboard, USB mouse, and monitor console. As a USB 2.0 hub, it permits each computer to access any peripherals connected to the hub on a 'one computer at a time' basis.
Specifications:
| Computer Connections | 4 | ||
| Port Selection | Front Panel Pushbuttons; Hotkey | ||
| Connectors | Console Ports | Keyboard | 1 x USB Type A Female (Black; rear panel) |
| Video | 1 x DVI-I Female (White) | ||
| Mouse | 1 x USB Type A Female (Black; rear panel) | ||
| Speakers | 2 x Mini Stereo Jack Female (Green; 1 x front panel; 1 x rear panel) | ||
| Microphone | 2 x Mini Stereo Jack Female (Pink; 1 x front panel; 1 x rear panel) | ||
| KVM Ports | Keyboard / Mouse | 4 x USB Type B Female (White) | |
| Video | 4 x DVI-I Female (White) | ||
| Speakers | 4 x Mini Stereo Jack Female (Green) | ||
| Microphone | 4 x Mini Stereo Jack Female (Pink) | ||
| Power | 1 x DC Jack | ||
| USB Hub | USB Hub | ||
| Switches | Selected | 4 x Pushbutton | |
| LEDs | On Line / Selected | 4 (Orange) | |
| USB Link | 4 (Green) | ||
| Emulation | Keyboard/Mouse | USB | |
| Video | 1920 x 1200@ 60Hz; DDC2B | ||
| Scan Interval | 1–99 secs. (5 secs. default) | ||
| Power Consumption | DC5.3V, 10.7W | ||
| Environment | Operating Temp. | 0 - 50 °C | |
| Storage Temp. | -20 - 60 °C | ||
| Humidity | 0-80% RH, Non-condensing | ||
| Physical Properties | Housing | Metal | |
| Weight | 0.94 kg | ||
| Dimensions ( L x W x H ) | 27.00 x 8.70 x 5.50 cm | ||
Package Contents
- 1 x CS1764A USB 2.0 DVI KVMP™ Switch
- 4 x Custom KVM Cable Sets (DVI-D)
- 1 x Power Adapter
- 1 x User Instructions
