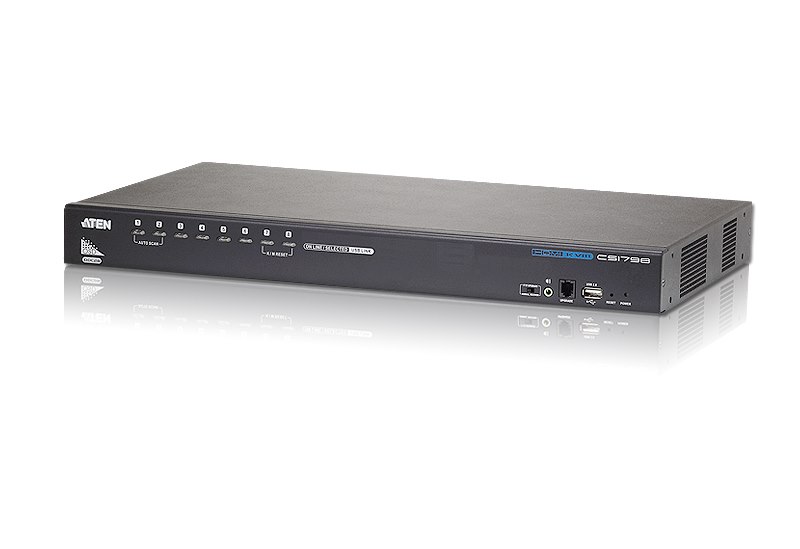

Aten 8-Port Rackmount Hdmi KVM Switch With Multi Display Feature

  • Part: 1376600
  • Model: CS1798-AT-U
$857.00

Availability

Out of Stock

Details:

The CS-1798 8-port USB HDMI KVM Switch is a multi-purpose appliance that consolidates access and control of up to 8 HDMI computers from a single USB keyboard, USB mouse, and monitor console.

The CS-1798 can be cascaded up to three levels – to control up to 512 computers – all from a single console.

In addition the CS-1798 features multi-display functionality, which enables the use of standard USB cables to stack up to eight switches in a multi-display installation where each computer is fitted with multiple video cards. It allows you to contrast, analyse and monitor video output in convenient ways, substantially simplifying the working environment.

Furthermore, the CS-1798 comes with ATEN's on-screen display (OSD) function, which can access any computer connected to the installation, it also offers OSD confi guration backup/restore to save/back up the OSD settings and restore them as needed.

The CS-1798 provides multimedia keyboard support and is audio enabled. You can listen to the audio output of each computer on two sets of speakers (on a one at- a-time basis).

Specifications:

Computer Connections

  • Direct: 8
  • Max.: 512 (via Cascade)
  • Port Selection: OSD, Hotkey, Pushbutton

Connectors

  • Console Ports:
    • 2 x USB Type A Female (Black)
    • 1 x HDMI Female
    • 2 x Mini Stereo Jack Female
    • (Green; 1 x front panel, 1 x rear panel)
  • KVM Ports:
    • 8 x USB Type B Female (White)
    • 8 x HDMI Female (White)
    • 8 x Mini Stereo Jack Female (Green)
  • Firmware Upgrade: 1 x RJ11 Female (Black)
  • Power: 1 x DC Jack
  • USB Hub: 2 x USB Type A Female (White) (1 x front panel, 1 x rear panel)

Switches

  • Port Selection: 8 x Pushbutton
  • Reset:1 x Semi-recessed Pushbutton
  • Firmware Upgrade: 1 x Slide Switch

LEDs

  • USB Link: 8 (Green)
  • Power: 1 (Dark Green)
  • On Line /Selected: 8 (Orange)

Emulation

  • Keyboard / Mouse: USB
  • Video: 1080p / 1920 x 1200 (DVI)
  • Scan Interval: 1 – 255 Seconds (Default: 5 secs)
  • Power Consumption: DC 5.0V; 12.0W

Environmental

  • Operating Temperature: 0 – 50°C
  • Storage Temperature: -20 – 60°C
  • Humidity: 0 – 80% RH, Non-condensing

Physical Properties

  • Housing: Metal
  • Weight: 3.49 kg
  • Dimensions (L x W x H): 43.24 x 25.72 x 4.40 cm

* The specification and pictures are subject to change without notice.
* All trademarks and logos are the properties of their respective holders.
