Details:

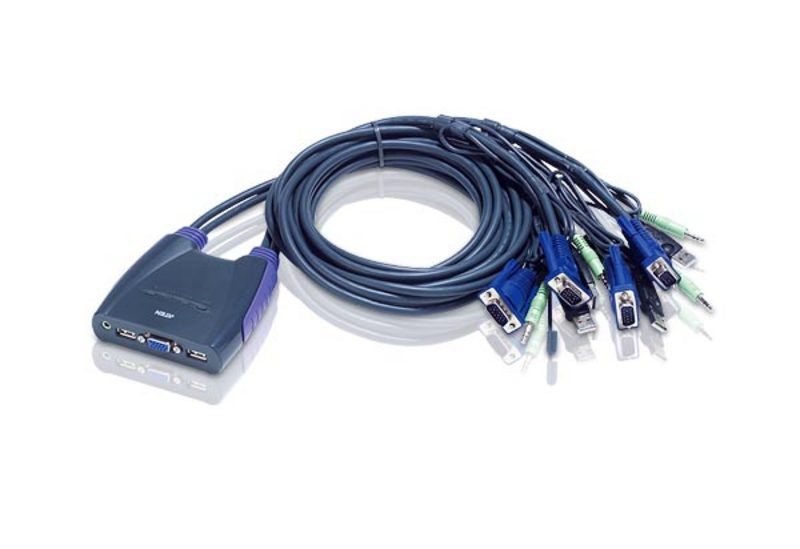

Aten CS-64U – 4-Port USB KVM Switch
CS64U 4-Port USB KVM Switch has a handy design integrating with 6 feet of cables and built-in USB. It can control 4 servers via a single console.
Specifications:
| Computer Connections | 4 | ||
| Computer Port Selection | Hotkey | ||
| Connectors | Console Ports | Keyboard | 1 x USB Type A Female (White) |
| Video | 1 x HDB-15 Female(Blue) | ||
| Mouse | 1 x USB Type A Female (White) | ||
| Speaker | 1 x Mini Stereo Jack Female (Green) | ||
| KVM Ports | Keyboard/Mouse | 4 x USB Type A Male(Black) | |
| Video | 4 x HDB-15 Male(Blue) | ||
| Speaker | 4 x Mini Stereo Plug Male (Green) | ||
| LED | Selected | 4 (Green) | |
| Cable Length | Computers | 1.8m | |
| Emulation | Keyboard/Mouse | USB | |
| Video | 2048 x 1536, DDC2B | ||
| Scan Interval | 1-99 seconds | ||
| Environment | Operating Temp. | 0°~50 °C | |
| Storage Temp. | -20°~60 °C | ||
| Humidity | 0~80% RH, Non-condensing | ||
| Physical Properties | Housing | Plastic | |
| Weight | 0.80 kg | ||
| Dimensions ( L x W x H ) | 10.90 x 9.72 x 2.54 cm | ||
Package Contents
- 1 x 4-Port USB KVM Switch with Attached Cables
- 1 x User Instructions
