Details:

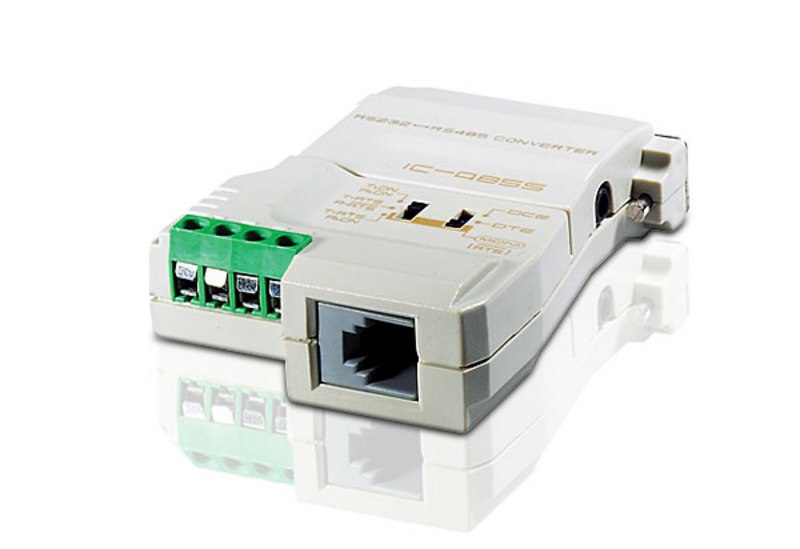

Aten IC-485S – RS-232/RS-485 Interface Converter
IC485S is a 2-way converter for converting RS-232 signals to and from RS-422/RS-485 signals in long-distance application up to 1200m (4000 ft.). It supports the connection of up to 32 hubs.
Specifications:
| Connectors | 1 DB-25 Female (RS-232) | |
| RS-485 / RS-422 Four Terminal Block | ||
| 1x RJ-11 Female | ||
| Switches | SW1 | DCE, DTE, Monitor |
| SW2 | TxON, RxON | |
| TxRTS, RxRTS | ||
| TxRTS, RxON | ||
| Power Consumption | DC9V, 1.35W (max.) | |
| Signal Range | 1200 m [4000'] (max.) | |
| Data Rate | Up to 100 Kbps under 1200 m [4000'] | |
| Environment | Operating Temperature | 0 ~50°C |
| Storage Temperature | -20 ~ 60°C | |
| Humidity | 0~80% RH, Non-condensing | |
| Physical Properties | Housing | Plastic |
| Weight | 60 g | |
| Dimension ( L x W x H ) | 5.40 x 7.45 x 1.85 cm | |
Package Contents
- 1 x Bi-directional Converter
- 1 x Power Adapter
- 1 x User Instructions
