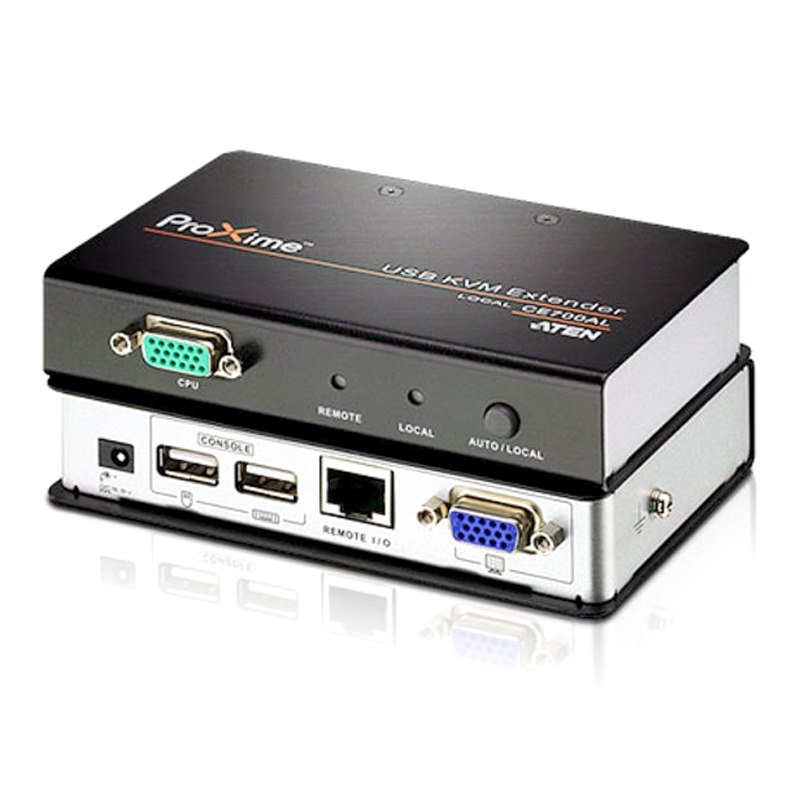

Aten CE-700A – USB KVM Extender

The CE700A is a USB KVM Extender with superior video quality and built-in ESD and surge protection that allows access to a computer system up to 150 meters away from a remote USB console (USB keyboard, monitor, and USB mouse).

The CE700A improves on previous designs by: 1) incorporating 8KV/15KV ESD protection and 2KV surge protection; 2) providing superior video quality - up to 1920 x 1200 resolution; 3) using inexpensive Cat 5e cable, instead of bulkier, more expensive, standard cables, for a much neater, more convenient, more reliable data transfer connection; 4) it is able to sense the distance to the system and automatically adjusts the gain accordingly; and 5) it features a custom ASIC to ensure the utmost in reliability and compatibility.

Specifications:

• Connectors:
• Console Ports:
• Keyboard: 1 x USB Type A Female (White)
• Video: 1 x HDB-15 Female (Blue)
• Mouse: 1 x USB Type A Female (White)
• KVM Ports CE700AL:
• Keyboard/Video/Mouse: 1 x SPHD-17 Female (Green)
• Unit to Unit: 1 x RJ-45 Female (Black)
• Power: 1 x DC Jack (Black)
• Pushbuttons CE700AL:
• Operating Mode Selection: 1 x Pushbutton
• LEDs CE700AL:
• Local: 1 (Green)
• Remote: 1 (Green)
• LEDs CE700AR:
• Remote: 1 (Green)
• Link: 1 (Green)
• Emulation - Keyboard/Mouse: USB
• Power Consumption:
• CE700AL: DC5.3V/2.31W
• CE700AR: DC5.3V/2.84W
• Video:
• 1920 x 1200 @ 60Hz (30m)
• 1600 x 1200 @ 60Hz (100m)
• 1280 x 1024 @ 60Hz (150m)
• Environment:
• Operating Temp.: 0 ~ 50°C
• Storage Temp.: -20 ~ 60°C
• Humidity: 0 ~ 80% RH, Non-condensing
• Physical Properties:
• Housing: Metal
• Weight:
• CE700AL: 0.32 kg
• CE700AR: 0.31 kg
• Dimensions (LxWxH): 12.50 x 8.15 x 2.50cm
• Package Contents:
• 1 x CE700AL USB KVM Extender (Local Unit)
• 1 x CE700AR USB KVM Extender (Remote Unit)
• 2 x Power Adapters
• 1 x USB KVM Cable (1.8m)
• 1 x Mounting Kit
