Details:

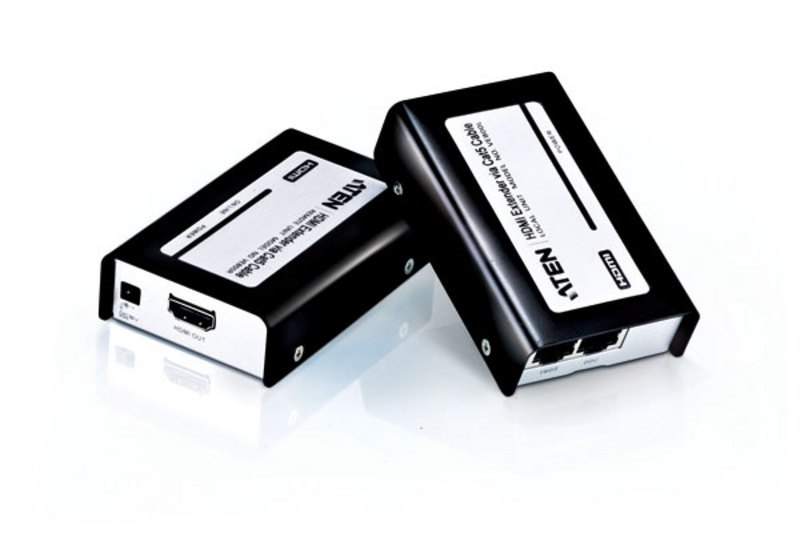

The VE-800 HDMI Extender extends your HDMI display up to 60m away from your HDMI source using two Cat 5e cables. It is equipped with HDMI (high definition multimedia interface) connectors and is capable of supporting DVI-D (Single-Link) equipment when used with a HDMI-to-DVI adapter, providing greater flexibility and installation options when integrating several home theater components.

Specifications:

• Function: VE800AT // VE800AR
• Connectors:
  • Display (HDMI Out) N/A // 1 x HDMI Type A Female (Black)
  • Device (HDMI In) 1 x HDMI Type A Female (Black) // N/A
  • Unit to Unit 2 x RJ-45 Female
  • Power 1 x DC Jack
• Switches: EQ Switch N/A // 1 x Knob
• LEDs:
  • Power 1 (Orange) // 1 (Orange)
  • On Line N/A // 1 (Green)
• Video: 1920 x 1200
• Power Consumption: DC5V, 1W // DC5V, 0.75W
• Environment:
  • Operating Temp. 0–50°C
  • Storage Temp. -20–60°C
  • Humidity 0–80% RH, Non-condensing
• Physical: Housing Metal
• Properties:
  • Weight 0.16kg // 0.16 kg
  • Dimensions (L x W x H) 9.00 x 5.50 x 2.40 cm // 9.00 x 5.50 x 2.40 cm

Package Contents

• 1x VE800AT HDMI Extender
• 1x VE800AR HDMI Extender
• 2x Power Adapters
• 1x Mounting Kit
• 1x User Instructions
