Details:

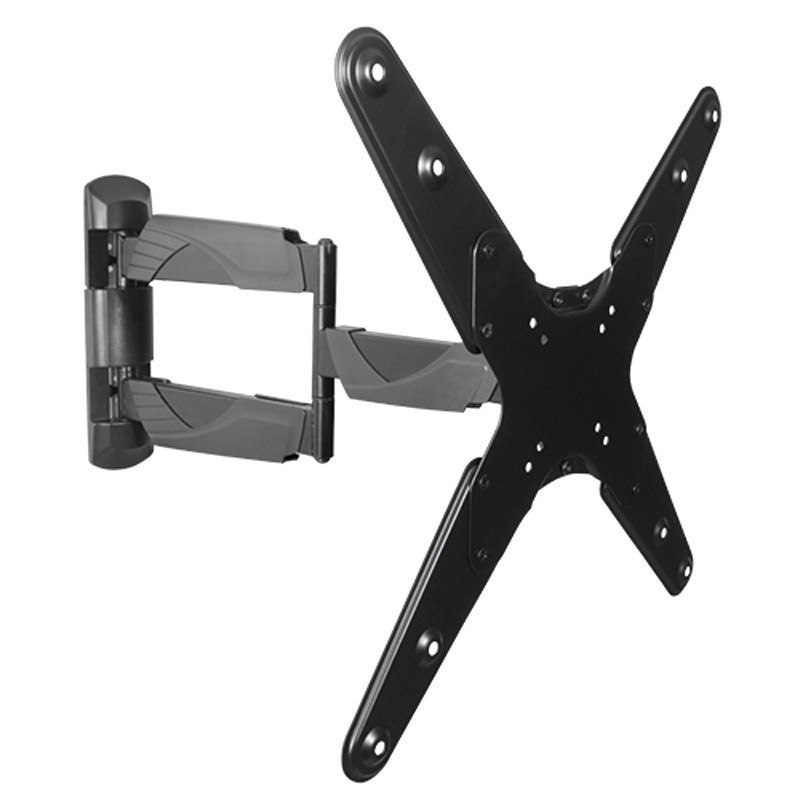

Mount your curved TV onto the wall for enhancing viewing flexibility. Features such as tilt, drag and drop and swivel allow curved TV to be positioned at the preferred viewing angle. The arm can be stretched up to 508mm and the three pivot points give a full range of movement to perfect your screen display - pan through 90° left or right and +10° ~ -20° tilt.
This pre-assembled arm comes complete with integrated cable management and decorative covers to ensure an elegant and tidy look. Its built-in level adjustment offers 3° clockwise and counterclockwise turning to ensure it is perfectly level. Compatible with VESA hole up to 400 x 400.
Specifications:
- Specification: TV wall mount
- By Grade: Standard
- By Function: Full motion
- By Mounting Pattern: Standard VESA
- Material: Steel
- Product Size: 508 x 425 x 425
- Recommended Screen Size: 23"-55"
- Installation: Solid wall, Single Stud
- Rated Weight Capacity: 35kg/77lbs
- Strength tested: 4 times approve
- Max.Hole Pattern: 400x400mm
- VESA Standard: 75x75, 100x100, 200x100, 200x200, 400x200, 300x300, 400x400
- Tilt: -15° ~ +10°
- Swivel: -90° ~ +90°
- Level Adjustment: -3° ~ +3°
- Profile: 45 ~ 508mm
- Bubble Level: No
- Anti-theft: No
- Cable Management: Yes
- Wall separated: No
- Panel separated: Yes
- AV Component Mount: No
- Freely Tilting: Yes
- Motorised: No
- Certification: GS, UL
